Drive Mixed Depth Disc Brake (Campagnolo 10/11/12S 50Mm 50Mm Silver)
Inclusive of all taxes
Front Depth
- 45mm
- 50mm
- 65mm
Decal
- Black
- Silver
Freehub
- Campagnolo 10/11/12S
- Campagnolo N3W 13S
- SRAM XDR 12S
- Shimano 10/11/12S & SRAM 10/11S
Rear Depth
- 40mm
- 45mm
- 50mm
- 65mm
View Shipping Details
Know more about this product
Why should I buy this?
Discover this product's exceptional qualities before buying.
Compare with other product
Comparing this product to any others that are comparable.
Get most popular reviews
Find product reviews for a better experience.
Where I can use this?
Understand the usability of the product.
| Unit | NOS |
| Wheel Sizes | 700C |
| Tire Compatibility | Clincher/ Tubeless |
| Bead Type | Hooked |
| Rim Depth | Refer to Depth Options |
| Inner Width | 21mm |
| Outer Width | 28mm |
| Front Hub Spacing | 12x100mm / QR x 100mm |
| Rear Hub Spacing | 12x142mm / QR x 130mm |
Having a mixed depth wheelset can improve the aerodynamics and handling of a bike. A shallower front...
Features

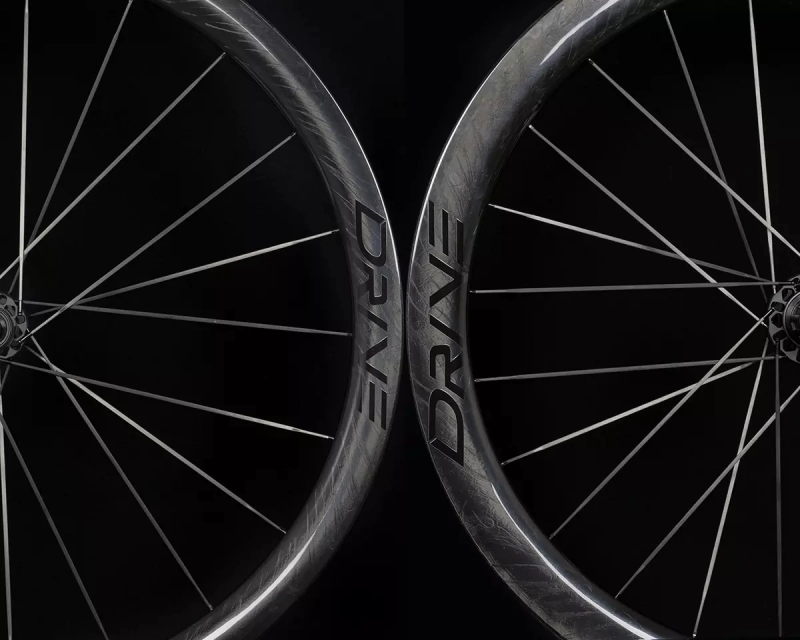

DRIVE RIMS
A Elitewheels, we design our Drive wheels to match the needs of professional riders. In order to deliver the best, we incorporate our own in-house UNI carbon fiber, a specific ratio of T700 and T800 carbon fiber (*Read more about UNI technology), making it not only strong, but also especially light and stiff. The U/V-shaped rim profile of the Drive DB Mixed Depth wheels was chosen to make the rims aero as well as stable in windy conditions. The 21mm inner rim width can accommodate wider tires for those looking for more grip and comfort.

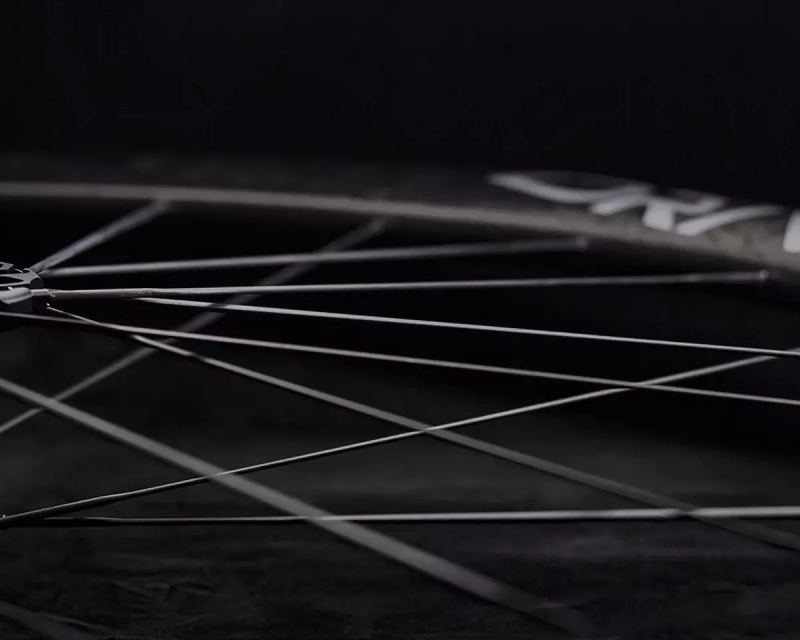

CARBON SPOKES
What separates Drive wheels from most others is its use of high-modulus carbon spokes. The 3.3mm wide aero bladed spokes offer a 7% increase lateral response as compared to equivalent steel spokes. The spokes are mechanically secured, giving the benefit of being able to be trued and maintained just like regular spokes. Anti-loosening technology is also incorporated into the spoke nipples. The threads built into the nipples give it a double-locking effect.

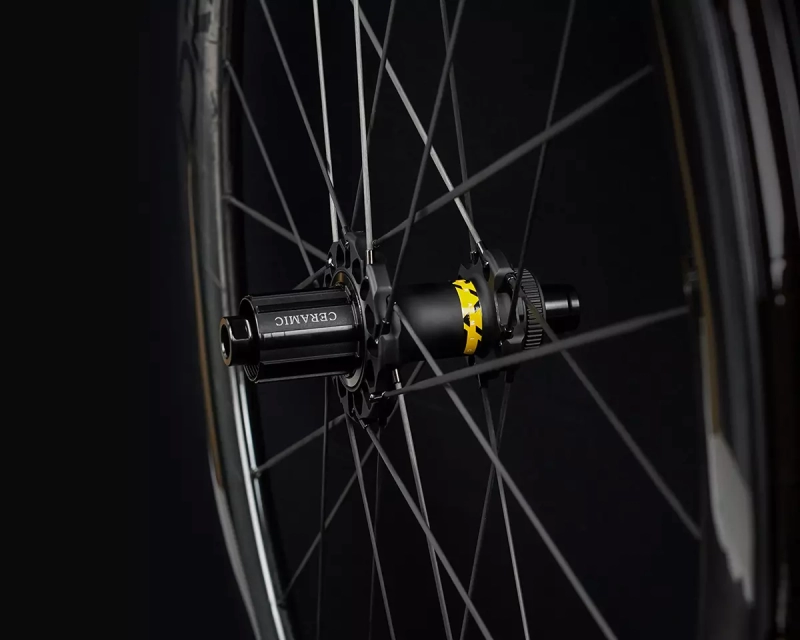

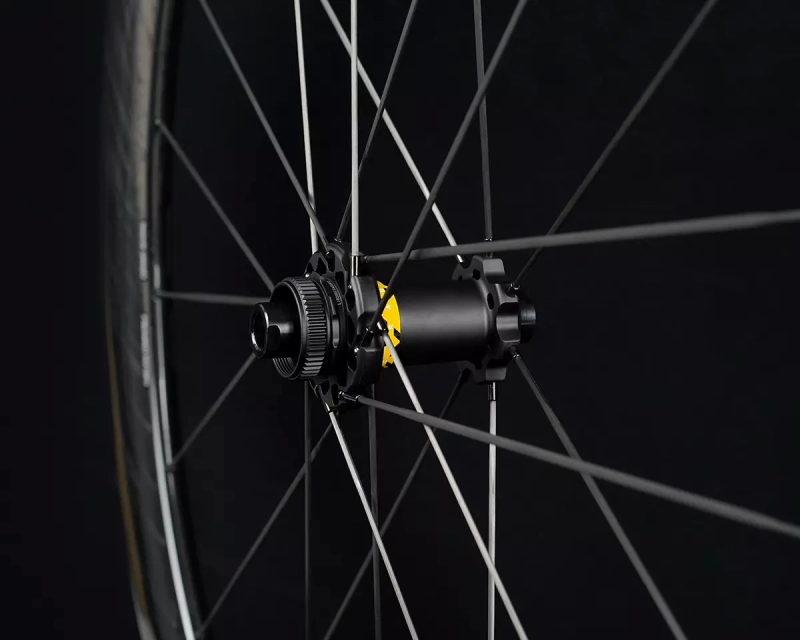

PERFORMANCE HUB
To get the most out of carbon fiber spokes, we specifically designed the hubs with high flanges to further increase lateral stiffness and improve handling. Elitewheels manufactures its own hubs with Fanuc CNC machines, allowing for a tolerance of 0.02mm. This accuracy is important for bearing longevity and low rolling resistance.
CERAMIC BEARINGS
The Drive front hub uses two 6803 mixed ceramic bearings. The Drive rear hub uses one 6903 and three 6803 mixed ceramic bearings. These large bearings offer better rigidity. The use of mixed ceramic bearings will allow you to have a more efficient bike, saving you precious watts.
